Amana Distinction

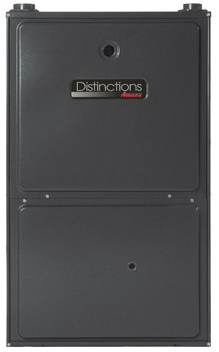

Model : DGMVM97 Modulating Variable-Speed ECM Gas Furnace

Brand : Amana
Product Description :

Standard Features

- ComfortNetTM Communicating System compatible

- Heavy-duty aluminized-steel tubular heat exchanger

- Stainless-steel secondary heat exchanger

- Self-calibrating modulating gas valve auto-configure for each installation

- Durable Silicon Nitride igniter

- Quiet variable-speed induced draft blower

- Utilizes ComfortNetTM communicating, two-stage or single-stage thermostats

- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display

- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier

- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand

- Multiple continuous fan speed options offer quiet air circulation

- Auto-Comfort and enhanced dehumidification modes available

Cabinet Features

- Designed for multi-position installation GMVM97: upflow, horizontal left or rightGCVM97 downflow, horizontal left or right

- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)

- Easy-to-install top venting with optional side venting

- Convenient left or right connection for gas and electrical service

- Cabinet air leakage (QLeak) = 2%

- Heavy-gauge steel cabinet with durable finish

- Fully insulated heat exchanger and blower section

- Airtight solid bottom or side return with easy-cut tabsfor effortless removal in bottom air-inlet applications
